Included in the Advantech IoT Gateway Starter Kit

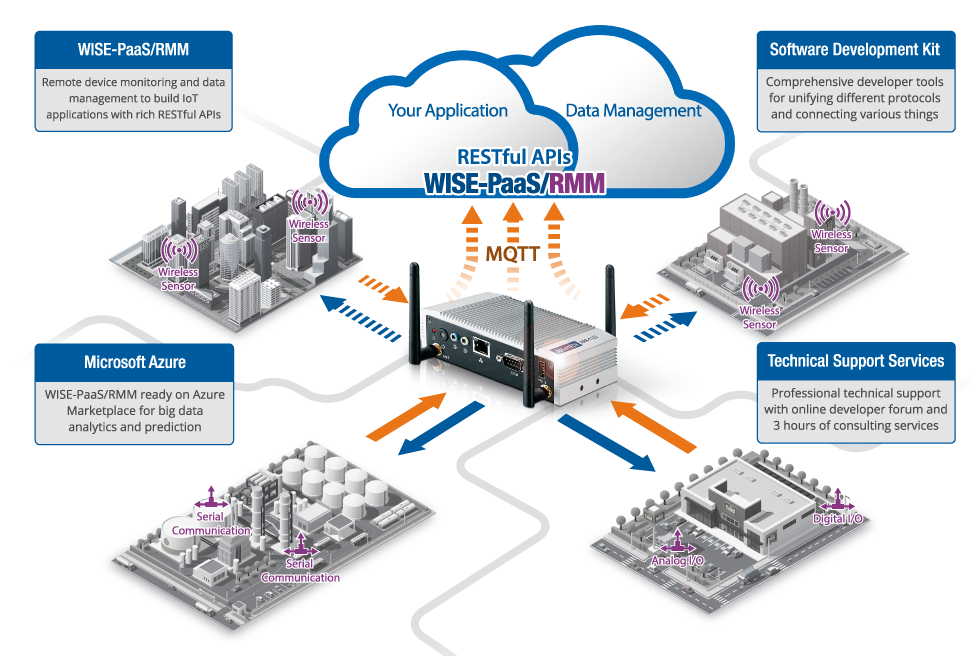

This powerful and complete IoT gateway starter kit empowers your IoT project with a reliable platform and open gateway technologies. The package includes a ready-to-run fanless automation system (Intel® Celeron® J1900 platform & Windows® 7 Embedded), IoT platform software, development kit and technical support service. Also included is Microsoft® Azure® service integration. With the Advantech IoT Gateway Starter Kit, you can build your own IoT applications quickly and efficiently.
Get the Starter Kit
Specifications
|
ARK-1123H
Ultra Compact IoT Gateway Starter Kit
|
ARK-2121L
Versatile I/O IoT Gateway Starter Kit
|
Processor System
|
Intel® Celeron® J1900 Quad Core 2.0GHz SoC
|
Intel® Celeron® J1900 Quad Core 2.0GHz SoC
|
Memory
|
4GB
|
4GB
|
Integrated O/S
|
WES7E
|
WES7E
|
Anti Harsh Environment
|
Operating Temp: -20 ~70 °C
Anti-Vibration Certification: IEC 60068-2-64
Shock Protection Certification: IEC 60068-2-27
|
Operating Temp: -20 ~ 70 °C
Anti-Vibration Certification: IEC 60068-2-64
Shock Protection Certification: IEC 60068-2-27
|
I/O Interface
|
Essential I/O Interface Support, RS232/422/485X 1
|
Scalable I/O Interface by iDoor, RS232 X2, RS232/422/485X 4
|
Wireless Networking
|
Wireless Expansion Capability - Mini PCIe X1
High Speed Ethernet Giga LAN X 2
|
Wireless Expansion Mini PCIe X 1 with SIM Holder
High Speed Ethernet Giga LAN X 2
|
Multi Media Support
|
Full HD Graphic Engine Embedded
Full Range of Media Format Support
|
Full HD Graphic Engine Embedded
Complete Media Output Support: HDMI+VGA
|
Storage Capacity
|
2.5” Drive Bay and mSATA Support
|
2.5” Drive Bay and mSATA Support
|
Dimensions
|
133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71")
|
264.5 x 69.2 x 133.0 mm (10.41" x 2.72" x 5.24")
|
|
|
Datasheet
|
