    Specification

      AIMC-3200-00A1E AIMC-3420-00A1E AIMC-2100-00A1E
    CPU Supports PGA 988 i7/i5/i3 mobile CPU
    Onboard Intel® Core™ i3 3.3GHz    		 Supports PGA 988 i7/i5/i3 mobile CPU
    Onboard Intel® Core™ i3 3.3GHz    		 LGA 1155 Intel® Core™ i7/i5/i3
    Memory 4GB DDR3 (Max 8GB) 4GB DDR3 (Max 8GB) 4GB DDR3 (Max 8GB)
    PCH H61 H61 QM77
    Storage SATA Bays: Two 2.5” HDDs
    Includes one 500GB HDD    		 SATA Bays: One 3.5” HDD
    Includes one 500GB HDD    		 SATA Bays: One 2.5” HDD
    Includes one 500GB HDD
    Expansion Slot One PCI-E x16
    One PCI-E x4    		 One PCI-E x16
    Two PCI-E x1    		 One PCI-E x16 (Gen3)
    I/O
    Interface
    Dimension
    Power Supply 250Watt 80Plus 300Watt 80Plus 250Watt
    Price From Contactar por cotización From Contactar por cotización Contactar por cotización

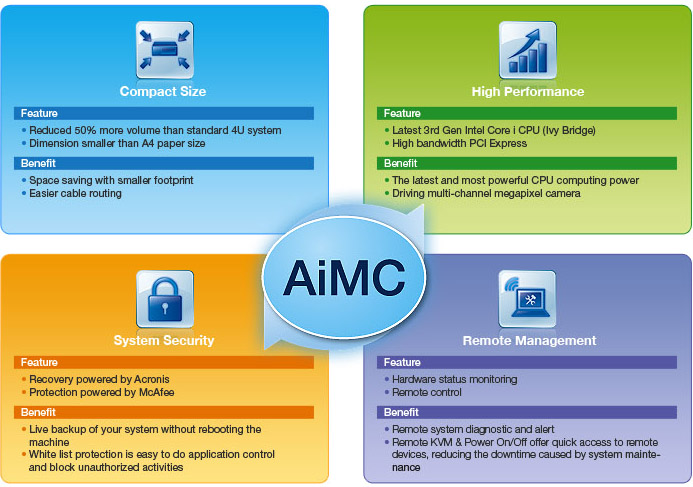

    Key Features
    AiMC series have been released for machine automation applications. Each self-contained micro computer features compact size, high performance, system security and remote management. With the latest 3rd generation Intel® Core™ processors, they deliver more computing and graphics performance. Each micro computer comes with Advantech’s SUSIAccess software for intelligent monitoring and control. Each intelligent micro computer offers integrators a no-nonsense turnkey solution that has been fully verified and certified.

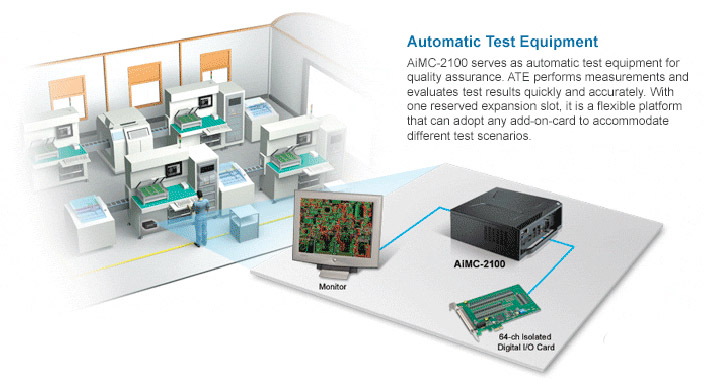

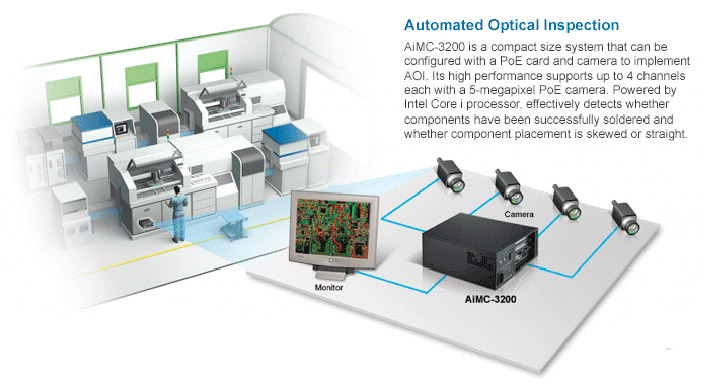

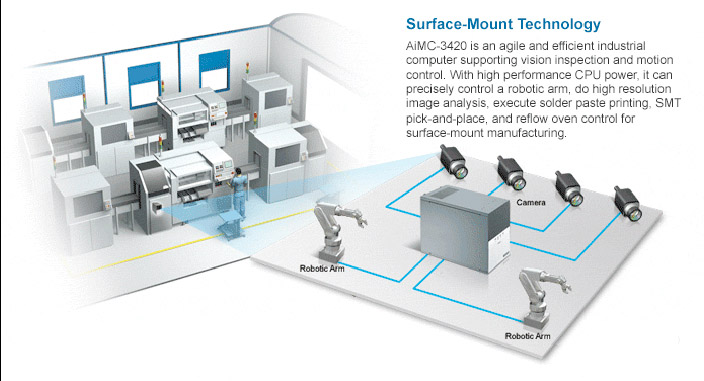

    Applications in PCBA Manufacturing

    Specification

      AIMC-3200-00A1E AIMC-3420-00A1E AIMC-2100-00A1E
    CPU Supports PGA 988 i7/i5/i3 mobile CPU
    Onboard Intel® Core™ i3 3.3GHz    		 Supports PGA 988 i7/i5/i3 mobile CPU
    Onboard Intel® Core™ i3 3.3GHz    		 LGA 1155 Intel® Core™ i7/i5/i3
    Memory 4GB DDR3 (Max 8GB) 4GB DDR3 (Max 8GB) 4GB DDR3 (Max 8GB)
    PCH H61 H61 QM77
    Storage SATA Bays: Two 2.5” HDDs
    Includes one 500GB HDD    		 SATA Bays: One 3.5” HDD
    Includes one 500GB HDD    		 SATA Bays: One 2.5” HDD
    Includes one 500GB HDD
    Expansion Slot One PCI-E x16
    One PCI-E x4    		 One PCI-E x16
    Two PCI-E x1    		 One PCI-E x16 (Gen3)
    I/O
    Interface
    Dimension
    Power Supply 250Watt 80Plus 300Watt 80Plus 250Watt
    Price From Contactar por cotización From Contactar por cotización Contactar por cotización
